Product Features and Advantages

• Precision positioning of material frames

• Automatic adaptation to different specifications and material shapes

• Seamless and efficient handling of upper and lower materials

• Automatically sorts, aligns, and layers post-cut materials

• Automatically performs spacer cloth placement, gripping, and material  transfer

• Automatic alignment of material stacks in transport boxes

• Prevents material scraping during transport

• Compatible with existing extrusion production lines and spray coating lines

• Load capacity exceeding 200 kg

• Completes a full material loading operation (including material layering,  spacer placement, and material relocation) within 2 minutes

Specifications and Parameters

Control System

• Integrated digital and analog CPU

• PROFIBUS and PROFI distributed connections

• Combined MPI/PROFIBUS DP master/slave interface

Mechanical Structure

• Handling of upper and lower materials

• Alignment of material stacks in transfer frames

• Synchronized operation with existing extrusion lines and spray coating lines

Aerospace and Military Technology

• Robotic servo-controlled gripping system

• Laser navigation for material frame positioning

• Complex system task planning and scheduling technology

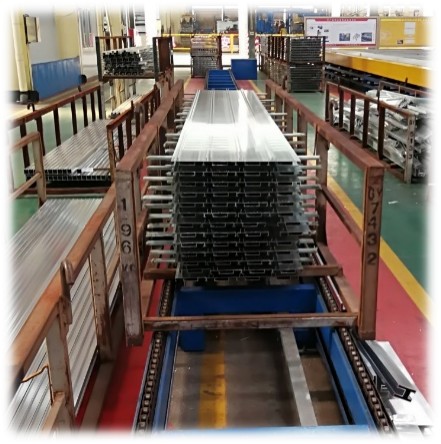

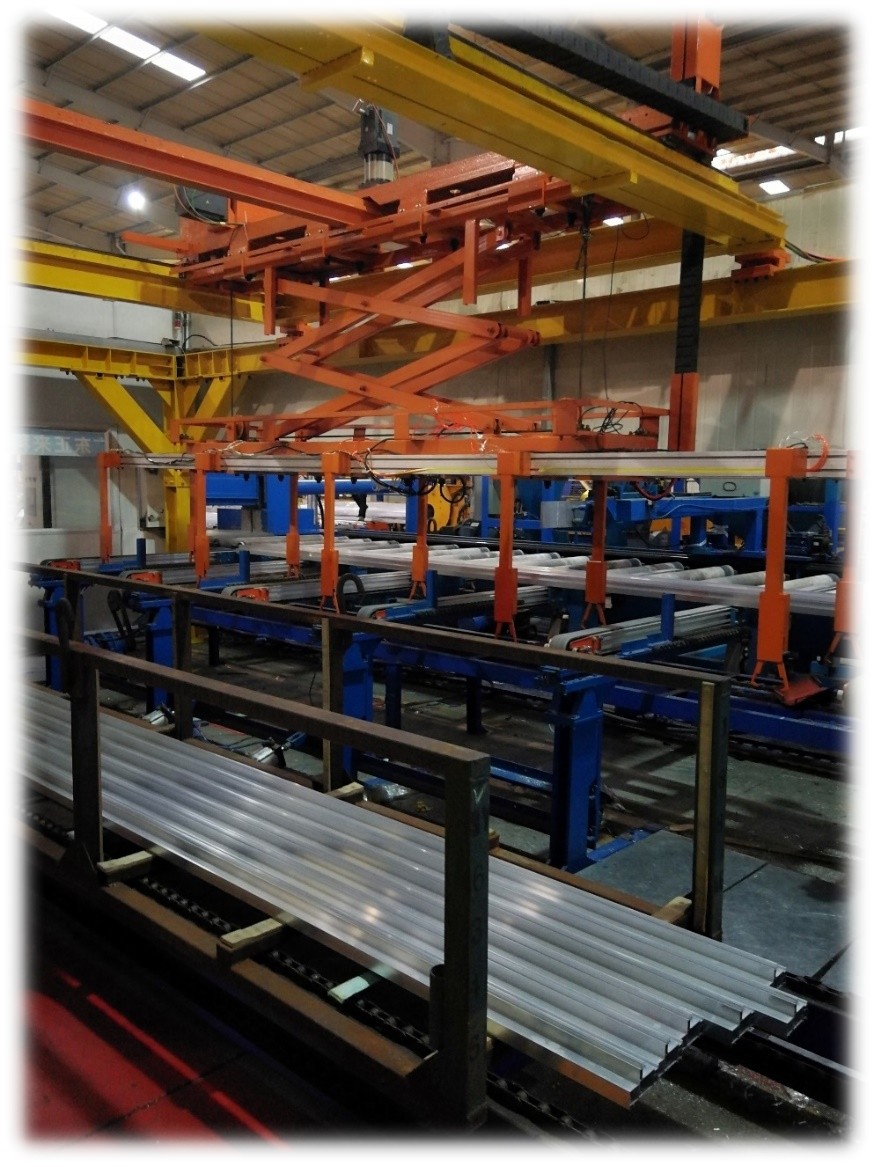

Robotic servo-controlled gripping system                                        Laser-guided material frame positioning system
