Product Features and Advantages

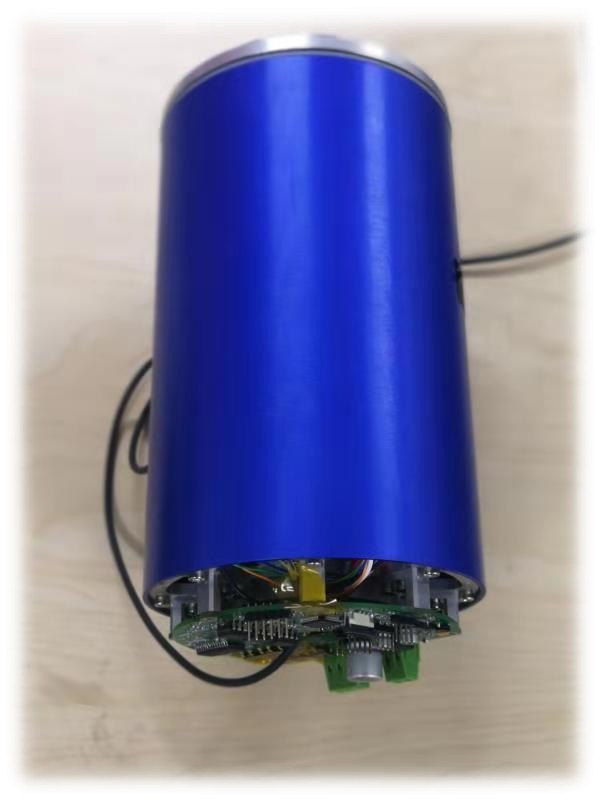

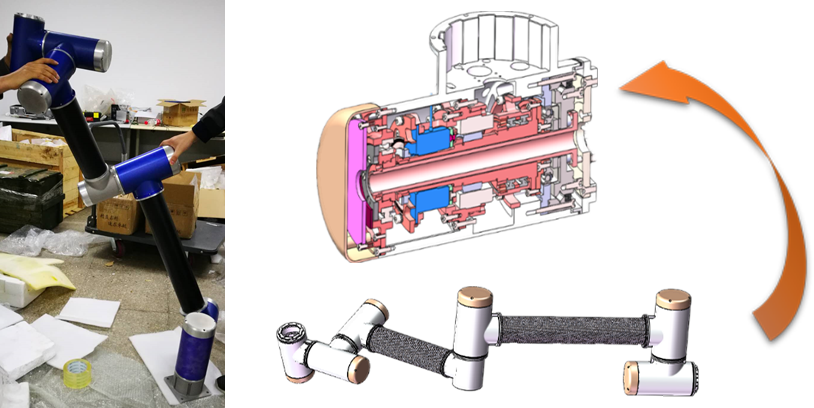

• Adopts torque loop control. Mechanical arm joints incorporate high-precision torque sensors and compliant control methods, achieving  exceptional agility and safety.

• The self-developed low-level control is accessible to upper layers, featuring  fully autonomous servo drive units capable of complex stiffness adjustment,  path planning, and compliant control.

• Arm motion planning and control software is developed in-house and  customized for specific environmental requirements.

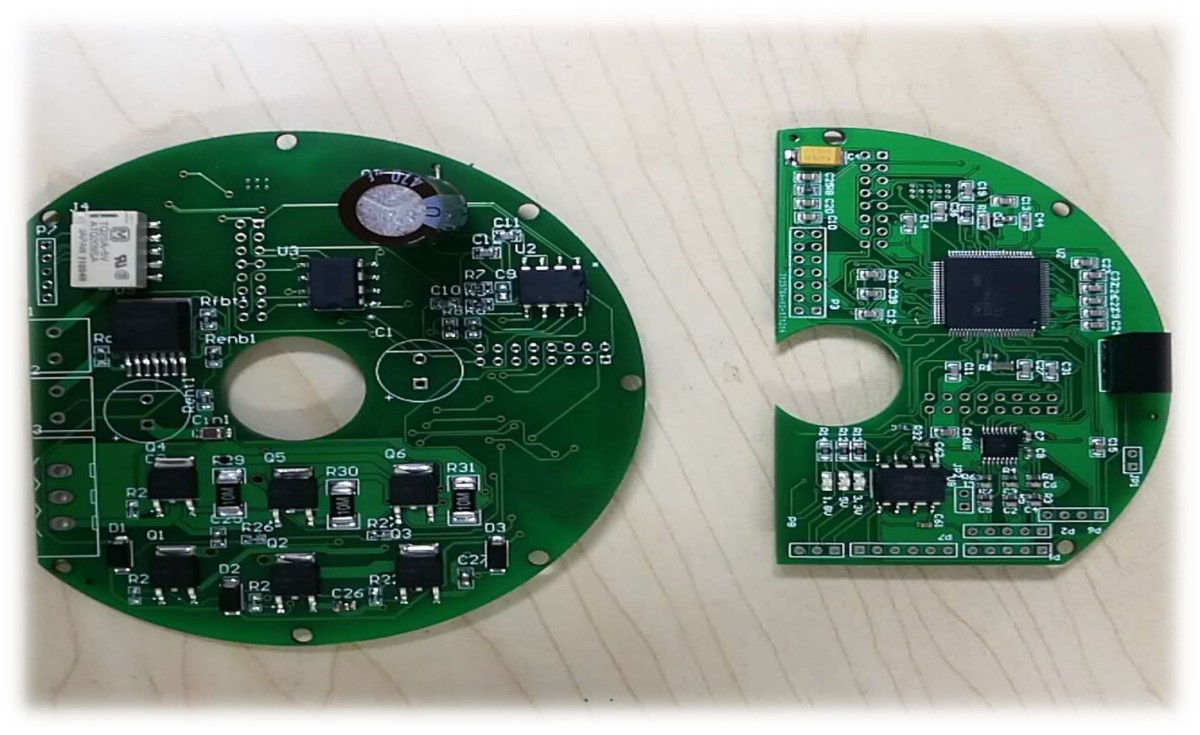

• Mechanical arm joint control drive circuits include:

    o Main controller

    o Three-phase drive bridge

    o Phase current sampling circuit

    o Hall sensor signal acquisition circuit

    o Communication interface circuit

    o Bus voltage detection circuit

    o Strong-weak electrical isolation circuit

    o Encoder signal acquisition circuit

    o Bypass capacitors

    o Filtering circuits

Specifications

• Input voltage: 24 V DC

• Rated input current: 10.1 A

• Peak input current: 30 A

• Peak output drive torque: 70 Nm

• Rated output speed: 24.5 rpm

• Uses vector control, with feedback from 16-bit (or higher) absolute encoders,  achieving servo positioning accuracy of 0.005°

• Communication via CAN bus with differential signaling, ensuring stable  communication, convenient wiring, and a baud rate of up to 1 Mbit/s for  precise control.
